The MorehouseCowles line of single shaft dissolvers are designed for liquid to liquid or dry to liquid mixing with a wide range of material viscosity capabilities of up to 50,000 cP.

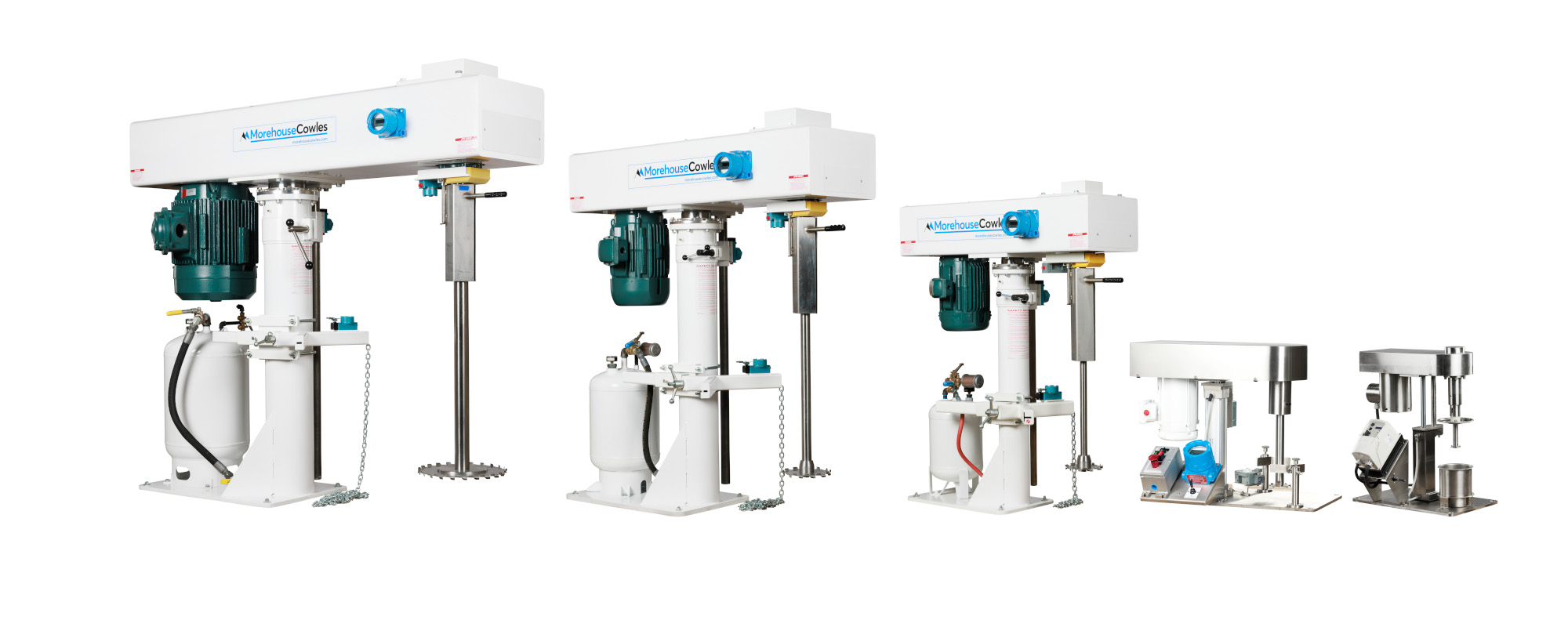

High Speed Dissolvers

V-Series

V-series standard designs deliver the ultimate dispersion, de-agglomeration and dissolving technology. Its reliable, versatile, and economical design is built for decades of dependable operation. With standard safety features, these dissolvers are designed to help prevent injury without sacrificing performance and reliability. These dissolvers will process solid-liquid, liquid-liquid and gas-liquid products, either synthetic, organic or inorganic. These units are available in capacities of ¼-gallon to 600-gallon batches. Custom capacities up to 5,000-gallon batches are available upon request.

v-series

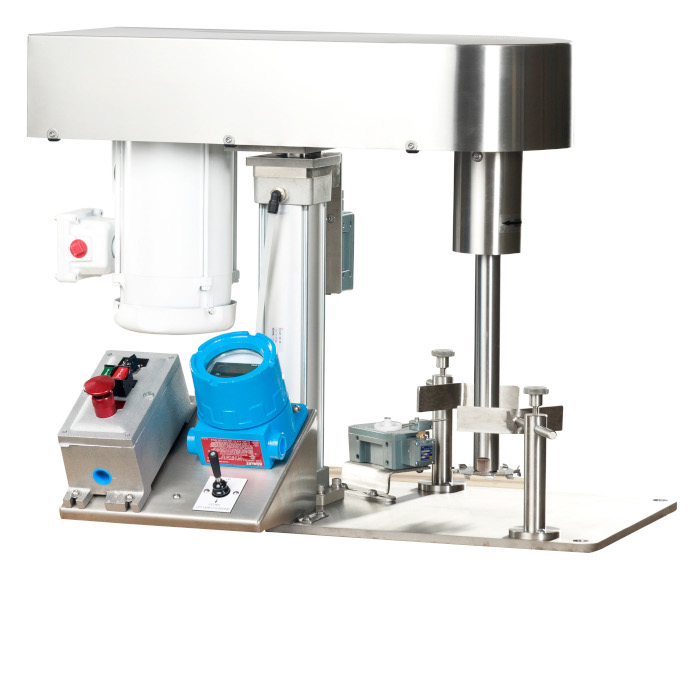

V-12

– ¼ to 5 gallon capacity
– Available in either 1 or 2 hp

View Details

Safety Features

Safety features for all V-series include:

  • Tank holder with limit switch – will not run if tank is not in place
  • Lift height limit switch – will not run if unit is raised above 12”
  • Shaft guard limit switch with clam shell design for easy cleaning – will not run if guard is not closed
  • Drive guard – covers belts and pulley

Direct Drive Dispersers

Stand-alone single-speed units that can be permanently affixed to mount without a lift. Direct driver dispersers offer a long operating life and low maintenance due to their simple, reliable design. Power ranges from 5 to 125 hp.

direct-drive-dispersers-2

Tank-Mounted Dissolvers

All single-shaft dissolvers have a tank-mount option. These machines mount directly to the tank and do not have a hydraulic lift for quick and easy installation.

tv-series

Low Speed Dissolvers

The LG-series low-speed dissolvers are custom built machines ideal for agitation or movement of material to avoid settling. They have a low-speed gear box and a lift or hoist. These units are available in capacities of 2-gallon to 20,000-gallon batches.

lg-series

Laboratory Mixers

For formulation development or small scale production batches, MorehouseCowles offers scaled down versions of our standard dissolvers and mixers ideal for a laboratory setting.

laboratory-mixers-2
tools

Customization

Our innovative engineering support teams are available to closely collaborate with customers to develop and design custom equipment and technology. Contact us to learn more.

Preventative Maintenance

For optimal performance, it is important to keep up with the preventative maintenance schedule. Recommended parts for the dissolvers include:

  • Impeller (V-series only, not required for LG series)
  • Bearings for main shaft
  • Belts
  • Packing Kit for Hydraulic lift

Request a Quote

For pricing on MorehouseCowles equipment, complete our request for quote form today.
